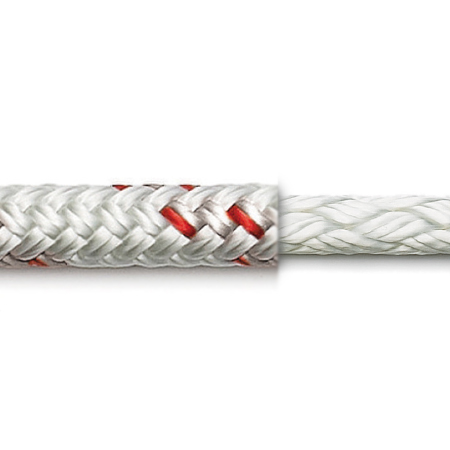

Trimmline Orion 500
Unbeatable versatility for sailmakers
High-quality Polyester in its cover and core promises excellent resistance to abrasion and UV radiation.
Much to the delight of our customers from the sailmaker sector, the popular Orion 500 trim line is back in the catalog. This line excels due to optimally processed polyester both in the core and in the cover.
Therefore, this line features excellent abrasion and UV resistance values which make it perfectly suitable as trim or luff line.
Cover: Polyester
Core: Polyester
Technical Data
| Diameter [mm] | Length [m] | Weight [g/m] | BL [daN] |
|---|---|---|---|
| 2 | 250 | 2 | 60 |
| 3 | 200 | 5 | 150 |
| 4 | 125 | 10 | 300 |
| 5 | 100 | 16 | 440 |
| 6 | 100 | 24 | 550 |
